Introduction
KIP4KQ12L is a AI photoelectric pod with three-axis orthogonal design,with automatic target identification and tracking function and enhanced heading axis driving capability,so that the pod can be adapted to various types of multicopters and composite wing UAVs to perform high-strength flight tasks.Using advanced AI recognition and multi-template filter tracking.
Features
●4K image quality,10x Optical zoom,40x effective hybrid zoom.
● Automatically detect and identify the target,detect the frame rate of 30FPS, with tracking and anti-occlusion 3-second target refind function.
● Support to calculate the center of the screen target longitude and latitude coordinates.
● With good electromagnetic compatibility and environmental adaptability.

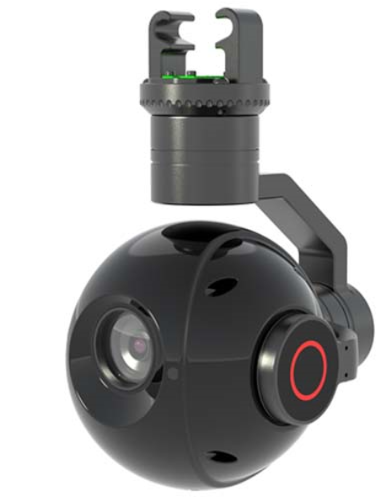

Straight Arm
Parameter
Name | Parameter | Name | Parameter |
Material | Aircraft aluminum,Nylon | Control angle range | 360°×N(Yaw)-120°~30°(Pitch)±70°(Roll) |

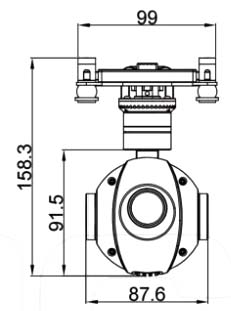

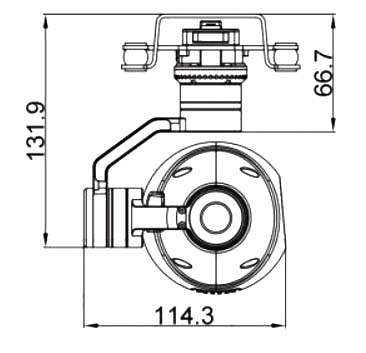

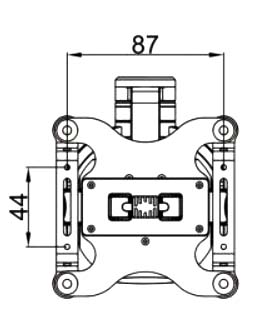

Size | 114.3(L)×87.6(W)x158.3(H)mm | Control mode | Speed control;Angle control |
Weight | 420±10g | Control signal | S.BUS、TTL UART、TCP、UDP |
Zoom factor | 10x Optical zoom/40x Max hybrid zoom | Video output | 1920*1080@30fps |
Visible light resolution | 4K | Video storage | MP4 |
Target tracking mode | Recognition tracking、Feature tracking | Photo storage | JPG |

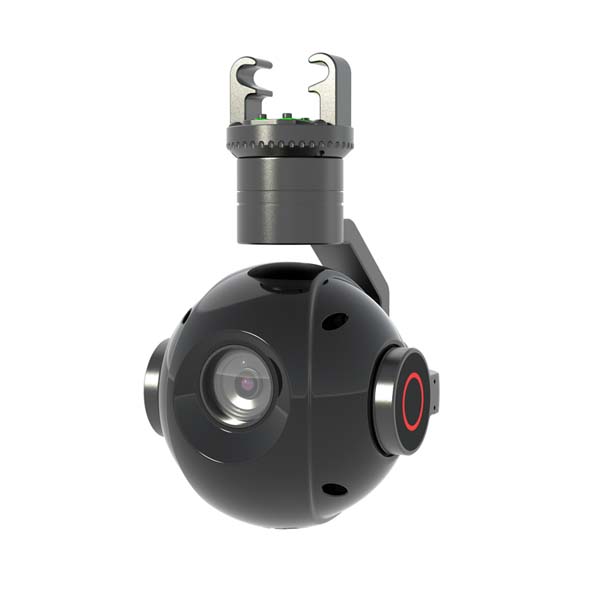

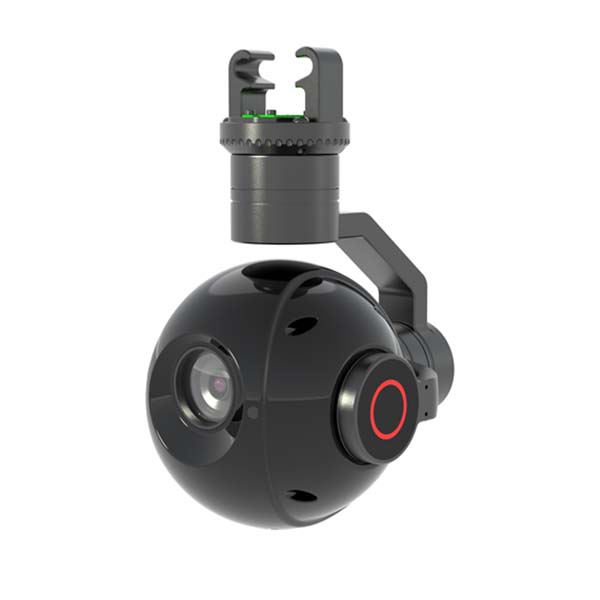

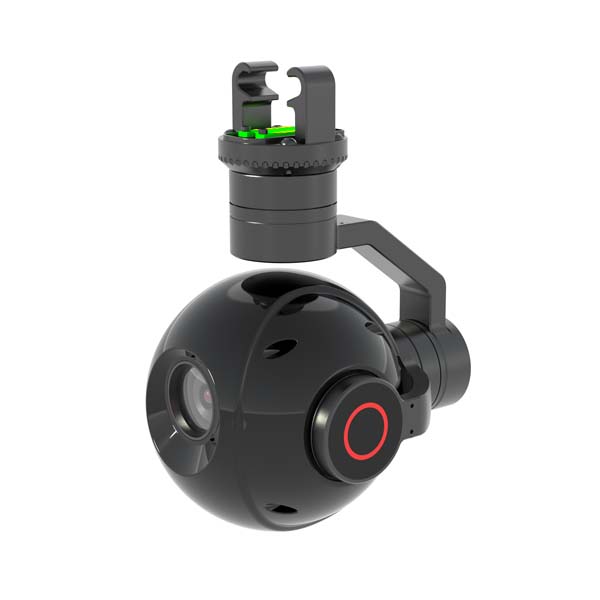

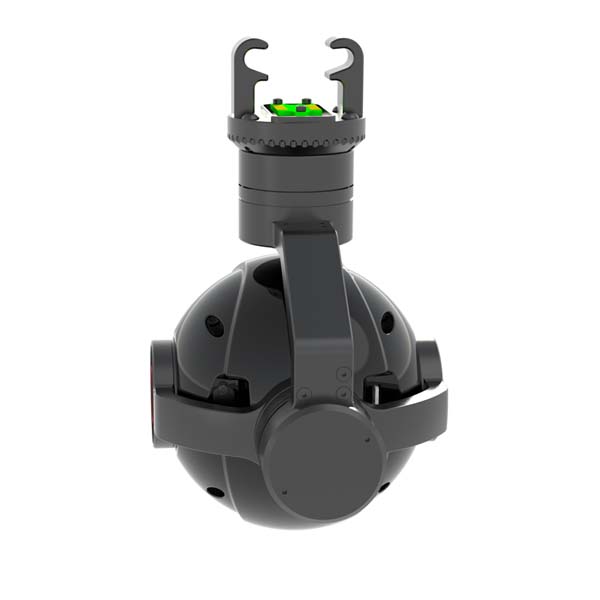

SIP4KQ12L
The Ai target detection/recognition/tracking ultra light 4K image quality,10x Optical zoom, 12 x lossless Zoom,40x effective hybrid zoom 3-Axis IP output aviation material for Drone Gimbal Camera
SIP4KQ12L used sony 2.5k 2.5k movement Ai target detection/recognition/tracking drone gimbal integrated 10x optical zoom, 12xstable lossless zoom,40x effective max hybrid zoom high-precision professional 3-axis stabilized Pod Gimbal Camera. Multi-template filter tracking technology allow it adaptive to the movement of the target and effective zoom in the tracking process,showing more subtle target details. It is easy to perform the reconnaissance, surveillance and other tasks. And the ground software supports PTZ control and zoom camera control. The PTZ adopts high-precision encoder FOC control scheme, which has the characteristics of high stability, small volume, ultra light weight and low power consumption. It committed to above 600mm wheelbase aircraft and more small operation platform to create high-end industry application scenarios.The camera adopts HD sensor with an 8 mega effective pixel. Support local TF card FAT 32 storage and wireless transmission. Supports1920*1080@30fps 2.5K@30FPS, 4K@25FPS, 1080P@60FPS, and 720P@120FPS slow motion video recording.
Feature |
Ø With yaw follow and yaw lock mode
Ø One key to look down vertically,one key to center function.
Ø 10x optical zoom,12xstable lossless zoom with effective 40x hybrid zoom
Ø Support 4K resolution
Ø Double record TF card, support network reading and writing
Ø Light weight： 420±10g
Ø Ai target detection / ai recognition /ai tracking
Ø Size: 114.3(L)×87.6(W)×158.3(H)mm
Ø Support target positioning
Ø Network and UART control modes
Ø Control signal: S.BUS, TTL UART, TCP, UDP
Ø AF time <1S
Ø Support to calculate the center of the screen target longitude and latitude coordinates
Ø Three-axis stabilization pod

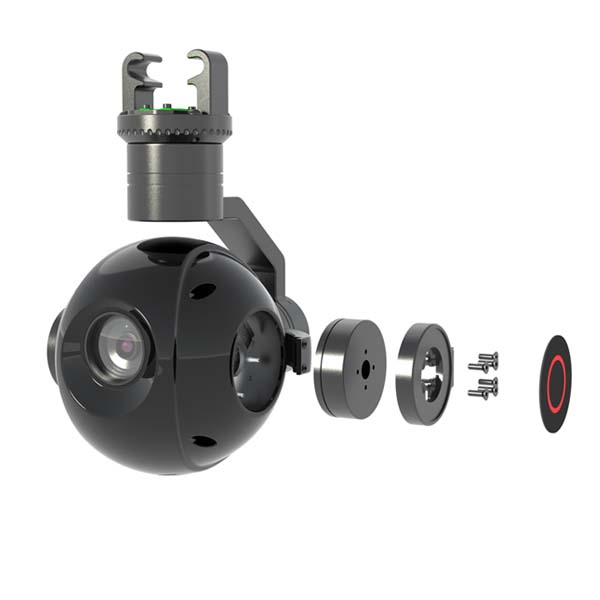

Ø Quick release

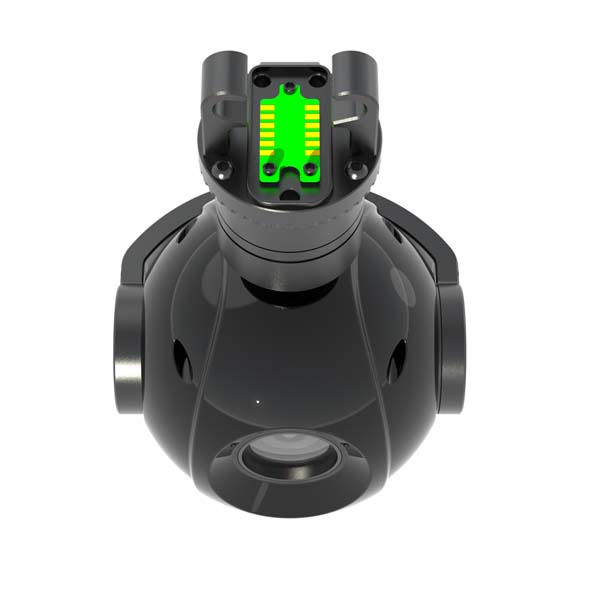

System structure |
SIP4KQ12L IP small 8MP network output ai tracking gimbal camera | ||
| ||
Voltage | 12v | |
Power Supply | 6W | |
Gimbal Feature | Roll Angle | ±60° |
Pitch Angle | -120° ~ 30° | |
Yaw Angle | ±360° | |
Pitch and Roll Jitter Angle | ±0.02° | |
Horizontal Jitter Angle | ±0.03° | |
Protection rank | IP43 | |
Installation method | Lower PTZ (factory default)/Upper PTZ (optional) | |
Quick-release method | Trigger Quick-release locking structure | |
Working current | 0.8A | |
Stable precision | 0.52 mrad | |
Stable frequency | 1250 Hz | |
Control accuracy | 2.09 mrad | |
Attitude correction | Auto | |
Control signal | S.BUS. TTL UART(RS232 optional). Network(TCP),UDP | |
Video interface | Network ×2 | |
Working model | Follow yaw, lock yaw, 90° overlook,target tracking | |
Control mode | Speed control, angle control, point to move | |
Controllable rotation speed (default) | Min: 0.18 °/s, Max: 45 °/s | |
Visible light Camera Para | Sensor | 1/2.8 inch SONY CMOS effective 8 mega pixels CMOS |
Focal length | 4.9～49.0mm(10x). 12x equivalent focal length: 58.8mm 40x Equivalent focal length:196mm | |
Zoom factor | 10 x Optical Zoom / 12 x lossless Zoom / 40 x Max. Hybrid Zoom | |
Zoom control mode | Speed control. Factor control | |
AF time | ＜1S Realtime focusing | |
Focus Mode | Auto/Manual | |
FOV | H: 66.1-7.65°. V: 35.2-4.12° | |
F-number | F=3.4 ~ 3.8 | |
M.O.D. | 1m(W)-20m(T) | |
Noise-signal ratio | 38.3 dB | |
MEGA OIS | Auto | |
White balance | Auto | |
Color mode | Colourful/Standard (default) /Brown/Black and white | |
Static pixel | Seven million | |
Image storage format | JPG：3648*2052 | |
Electronic stability | Support | |
Optical stabilization | Voluntarily | |
Video storage format | MP4 | |
Video output format | 2560×1440@30fps、 3840×2160@25fps 1920*1080@60fps、 1280*720@120fps | |
Storage methods | Mirco SD: 32GB | |
AI Intelligent Tracking module | Automatically detect the target types | Typical targets, such as vehicles, ships, and personnel, etc |
Number of multi-target assays | ≥20 | |
Minimum target size | At 3,636 pixels | |
Target detection rate | ≥85% | |
Target recognition rate | ≥80% | |
Target capture time | The 5 frames | |
false alarm rate | ≤15% | |
tracing accuracy | 1 Pixel | |
Anti-occlusion time | 3 Seconds | |
Maximum target tracking field of view | Not more than 1 / 3 field of view | |
processing speed | ≥30fps（@1080P） | |
Resistance to target deformation / occlusion | voluntarily | |
Target switching tracking | support | |
Target Localization | Location mode | Visual center point positioning |
Positioning accuracy | 20m(Under non complex terrain conditions) | |
Coordinate output type | Latitude and longitude(Gaussian coordinates) | |
Control Mode | SBUS, IP or serial port control | |
Ground Software Control | Windows and Android | |
Device Size | 114.3mm×87.6mm×158.3mm | |
Work Condition | -20℃ ~ 70℃ | |
Storage Condition | -30℃ ~ 80℃ | |
Main application | Drone aerial photography | |
Weight (Not including dampers) | 420±10g | |
