Introduction

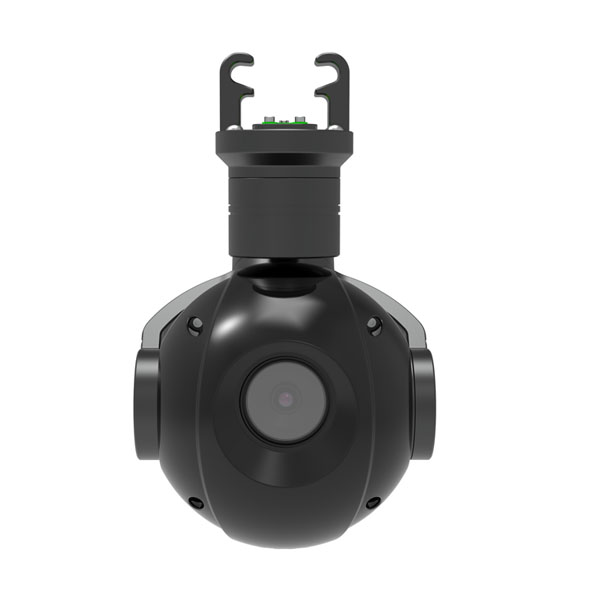

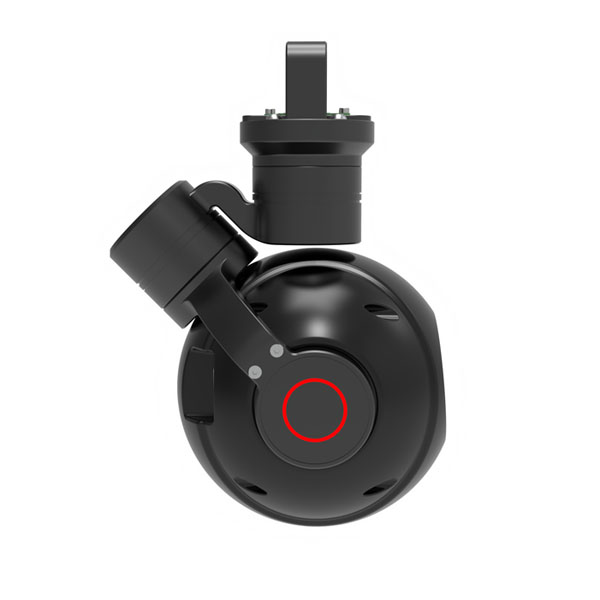

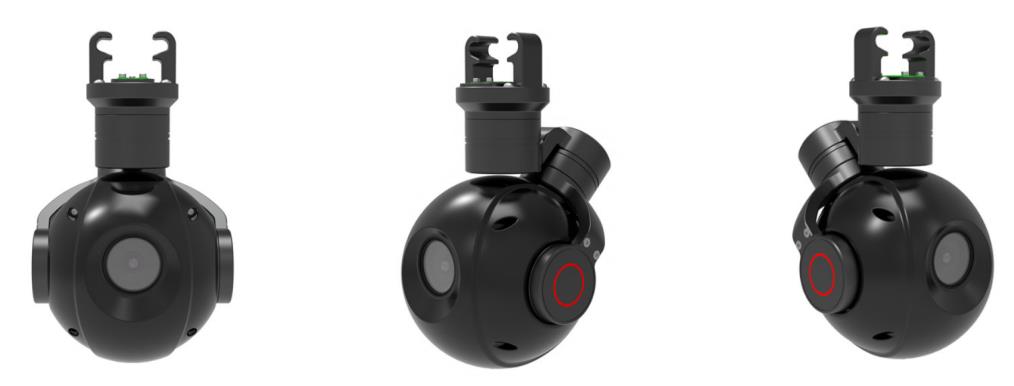

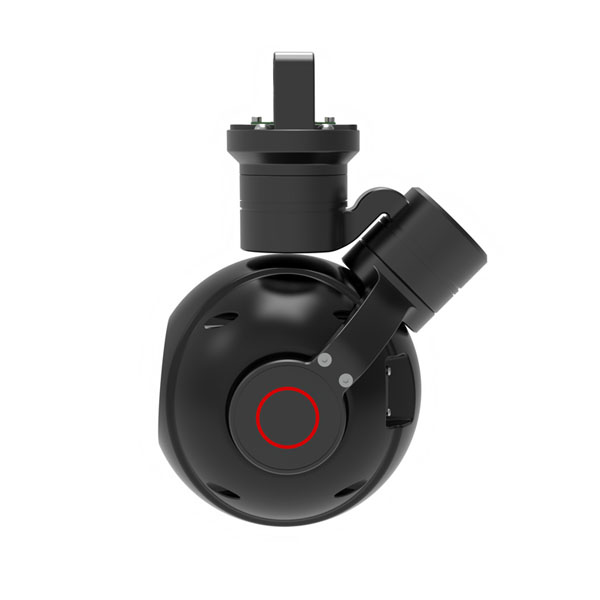

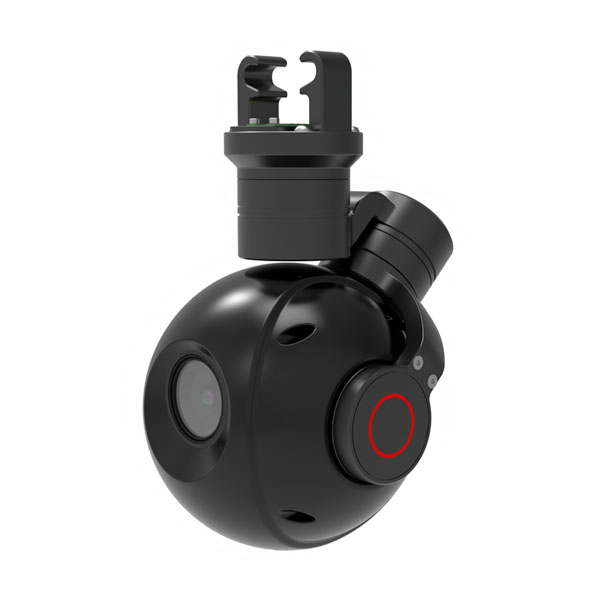

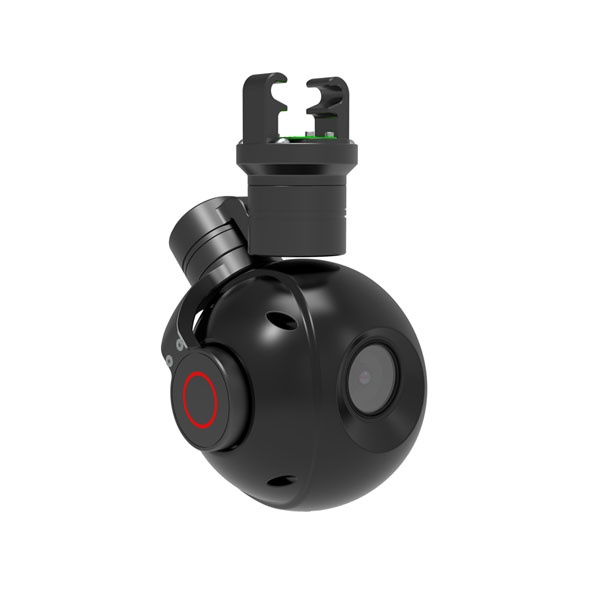

SIP4KQ12X is a singal sensor camera equipped with 4K,10x optical zoom lens.It adopts lightweight three-axis PTZ design to support more low-cost small operations.High-precision three-axis stability PTZ collaborates with the carrying platform,has high steady state frequency,captures and presents natural scenes,sports vision focusing and real-time HDR technology,whether it is dynamic or static target.Both can focus quickly and accurately,presenting a delicate and well-layered picture.
Features
● 4K image quality,10x Optical zoom,40x effective hybrid zoom;
● With yaw follow and yaw lock mode;
● Support to calculate the center of the screen target longitude and latitude coordinates;
● With one key to look down vertically,one key to center function.
Parameter
Name | Parameter | Name | Parameter |
Material | Aircraft aluminum,Nylon | Control mode | Speed control Angle control |
Size | 103(L)×88(W)×147(H)mm | Control signal | S.BUS、TTL UART、TCP、UDP |
Weight | 468±10g | Video output | 1920*1080@30fps |
Zoom factor | 10x Optical zoom /40x Max hybrid zoom | Video storage | MP4 |
Visible light resolution | 4K | Photo storage | JPG |
Control angle range | 360°×N(Yaw)-120°~30°(Pitch)±40°(Roll) |
SIP4KQ12X
The ultra light 4K image quality,10x Optical zoom,40x effective hybrid zoom, support target positioning, 3-Axis 2XIP output for Drone Gimbal Camera
SIP4KQ12X is a drone gimbal integrated 10x optical zoom, 40x effective max hybrid zoom with target positioning function of high-precision professional 3-axis stabilized Pod Gimbal Camera. The system supports 1080P network RTSP code stream output and it adopts network IP output. It
can easily capture remote details and clearly present the long-range view. Simultaneously equipped with target positioning function, The original 3D visual positioning system and it is easy to perform reconnaissance, surveillance and other tasks. And the ground software supports PTZ control and zoom camera control. The PTZ adopts high-precision encoder FOC control scheme, which has the characteristics of high stability, small volume, ultra light weight and low power consumption. The camera adopts HD sensor with an 8 mega effective pixel. Support local TF card FAT 32 storage and wireless transmission. Supports1920*1080@30fps 2.5K@30FPS, 4K@25FPS, 1080P@60FPS, and 720P@120FPS slowmotion video recording.
Feature |
Ø With yaw follow and yaw lock mode
Ø One key to look down vertically,one key to center function.
Ø 10x optical zoom with effective 40x hybrid zoom
Ø Support 4K resolution
Ø Double record TF card, support network reading and writing
Ø Light weight： 468±10g
Ø Size: 103(L)×88(W)×147(H)mm
Ø Support target positioning
Ø Network and UART control modes
Ø Control signal: S.BUS, TTL UART, TCP, UDP
Ø AF time<1S
Ø Support to calculate the center of the screen target longitude and latitude coordinates
Ø Three-axis stabilization pod
Ø Quick release
System structure |
SIP4KQ12X IP small 8MP network output gimbal camera | ||
| ||
Voltage | 12v | |
Power Supply | 10W | |
Gimbal Feature | Roll Angle | ±40° |
Pitch Angle | -120° ~ 30° | |
Yaw Angle | ±360° | |
Pitch and Roll Jitter Angle | ±0.02° | |
Horizontal Jitter Angle | ±0.03° | |
Protection rank | IP43 | |
Installation method | Lower PTZ (factory default)/Upper PTZ (optional) | |
Quick-release method | Trigger Quick-release locking structure | |
Working current | 0.8A | |
Stable precision | 0.52 mrad | |
Stable frequency | 1250 Hz | |
Control accuracy | 2.09 mrad | |
Attitude correction | Auto | |
Control signal | S.BUS. TTL UART(RS232 optional). Network(TCP) | |
Video interface | Network ×2 | |
Working model | Follow yaw, lock yaw, 90° overlook | |
Control mode | Speed control, angle control, point to move | |
Controllable rotation speed (default) | Min: 0.18 °/s, Max: 45 °/s | |
Visible light Camera Para | Sensor | 1/2.8 inch SONY CMOS effective 8 mega pixels CMOS |
Focal length | 4.9～49.0mm(10x). 40x Equivalent focal length ：196mm | |
Zoom factor | 10x Optical zoom/40x Max hybrid zoom | |
Zoom control mode | Speed control. Factor control | |
AF time | ＜1S Realtime focusing | |
Focus Mode | Auto/Manual | |
FOV | H: 61.1-7.65°. V: 35.2-4.12° | |
F-number | F=1.6 ~ 3.8 | |
M.O.D. | 1m(W)-20m(T) | |
SNR | 120 dB | |
MEGA OIS | Auto | |
White balance | Auto | |
Color mode | Colourful/Standard (default) /Brown/Black and white | |
Static pixel | 8 MP | |
Photo format | JPG：3648*2052 | |
Video storage format | MP4 | |
Video output format | 1920*1080@30fps | |
Storage methods | Mirco SD: 32GB | |
Target Localization | Positioning method | Image center point positioning (GPS information needs to be received) |
Positioning accuracy | 20m(Under non complex terrain conditions) | |
Coordinate output type | Latitude and longitude | |
PTZ physical shock absorbing structure | Longitudinal shock absorption distribution | Down pressure type 4 shock-absorbing balls physical shock absorption |
Effective image stabilization amplitude | 0.5mm@30~500Hz | |
Effective working amplitude | 1.2mm@25Hz. 3mm@5Hz | |
Control Mode | SBUS, IP or serial port control | |
Ground Software Control | Windows and Android | |
Device Size | 103mm×88mm×147mm | |
Work Condition | -20℃ ~ 60℃ | |
Storage Condition | -30℃ ~ 70℃ | |
Main application | Drone aerial photography | |
Weight (Not including dampers) | 468±10g | |
