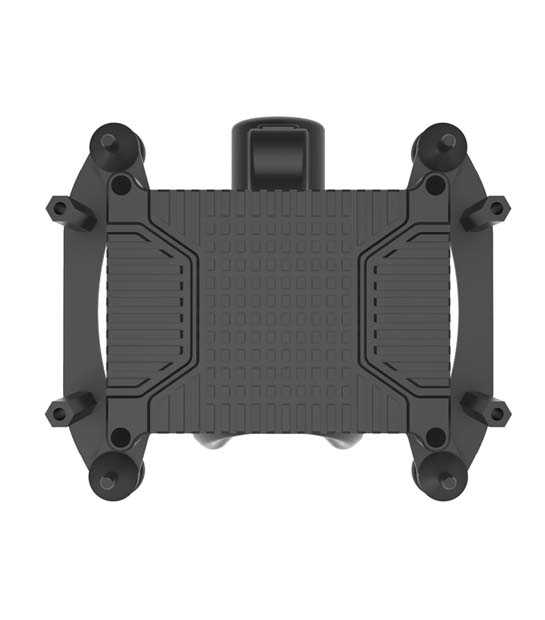

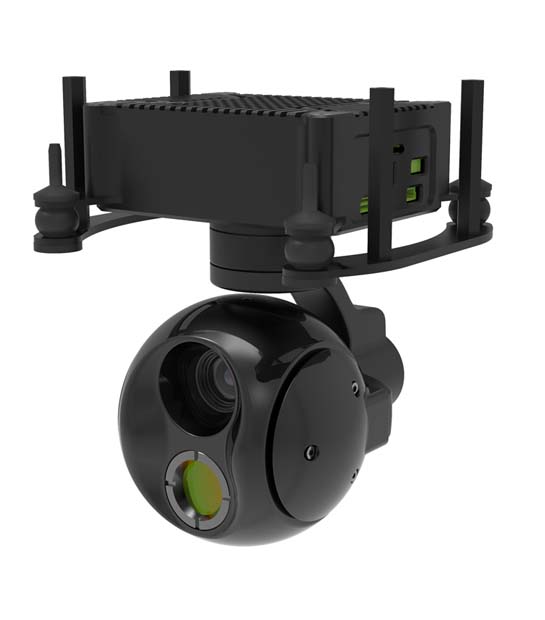

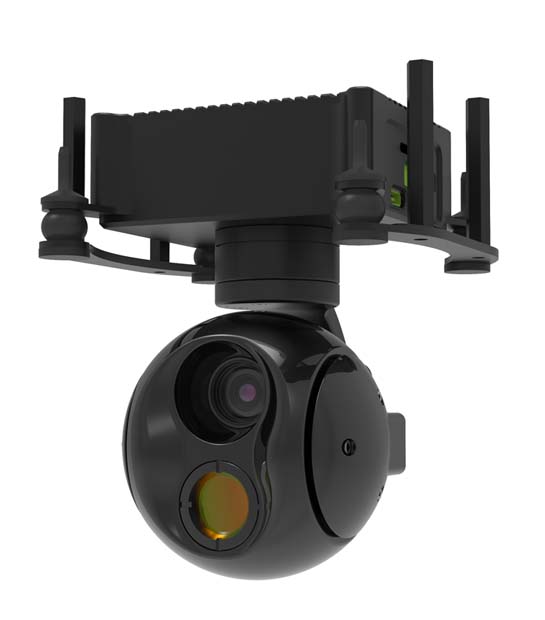

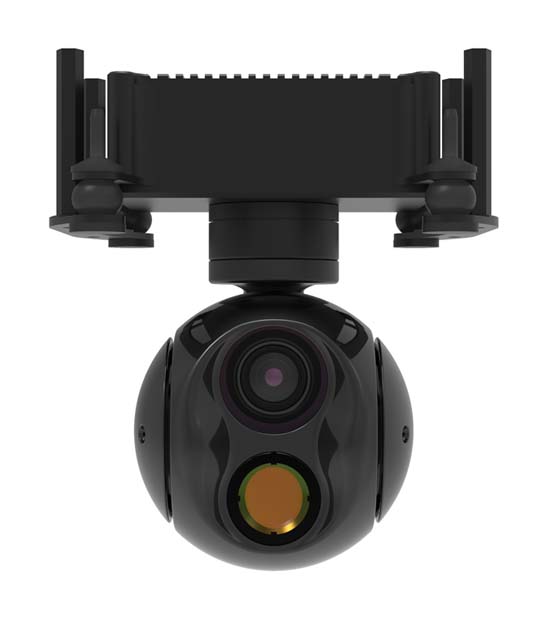

It is an ultra lightweight micro dual light pod equipped with a 6T computing power Al module, combined with advanced Al recognition technology and multi template filtering tracking technology, with powerful functions such as multi-target recognition and moving target recognition, as well as extremely strong target locking and tracking capabilities. All metal shell, with good resistance to rain, dust, corrosion, and strong anti-interference ability.
Detail

Introduction

It is an ultra lightweight micro dual light pod equipped with a 6T computing power Al module, combined with advanced Al recognition technology and multi template filtering tracking technology, with powerful functions such as multi-target recognition and moving target recognition, as well as extremely strong target locking and tracking capabilities. All metal shell, with good resistance to rain, dust, corrosion, and strong anti-interference ability.


Features

 Ultra-lightweight design,weightless than 300g

● Automatically detect and identify the target,detect the frame rate of 30FPS,with tracking and anti-occlusion 3-second target refind function;

● 8x smooth digital zoom,zoom process is smooth and fine.


Parameter



Name

Parameter

Name

Parameter

Material

Aircraft aluminum

Control mode

Speed control;Angle control

Size

83(L)×60(W)×110(H)mm

Control signal

S.BUSTTL UARTTCPUDP

Weight

280g±10g

Video output

3840×2160@30fps

Target detection type

People and vehicle(Support customization)

Working environment temp

-20℃~+55℃

Visible light resolution

4K

Thermal imaging resolution

640*512

Visible lens focal length

8mm

Thermal imaging focal length

9.1mm

Target tracking mode

 trackingFeature tracking

Photo storage

JPG

Control angle

±150(Yaw)  -300°~120°(Pitch)  ±50°(Roll)

Video storage

MP4


KIP4KQ02T609

Dual light 280g 4k gimbal camera with 6x digital visible zoom with 9xdigital zoom+ 640 Infrared thermal,3-Axis Ai tracking/recognition gimbal , IP output, support night vision.

KIP4KQ02T609 is a drone gimbal payload which integrating 8mm visible length 6x digital zoom camera, with 640*512 Infrared thermal 9mm length 8x thermal digital zoom, and 3-axis stabilized PTZ. Its built-in IR-CUT features automatic filter switching technology that adjusts intelligently to changes in ambient light, whether day or night. It adopts IP dual output and Ai tracking and recognition. The visible light camera uses a wide dynamic sensor with 8 mega effective pixels. Thermal camera adopts 640x512 resolution vanadium oxide detector with baffle design. The system supports network RTSP picture-in-picture code stream output, multiple picture-in-picture modes, and multiple pseudo-color switching, supporting global temperature measurement. The UART and IP can synchronously control the camera and PTZ, and support local TF Dual-channel video photography.

Feature



Ø 6x digital visible zoom+9xdigital 640

Ø thermal imaging zoom

Ø Visible len 8mm, thermal len 9mm

Ø  IP output

Ø Picture-in-picture modes

Ø Multiple pseudo-color switching

Ø TF card dual way channel recording, IP reading& writing

Ø Size: 83(L)*60(W)*110(H)mm

Ø Visible len 8mm, thermal len 9mm

Ø  AF time<1S

Ø  Ground station display & control

Ø  Light weight gimbal, 280g

Ø  3-axis stabilizer

Ø  Control signal: S.BUS, TTL UART, TCP, UDP

Ø Video output: 3840×2160@30fps

Ø Weight: 280g

Ø Support 4K resolution

Ø Ai target detection / ai recognition /ai tracking


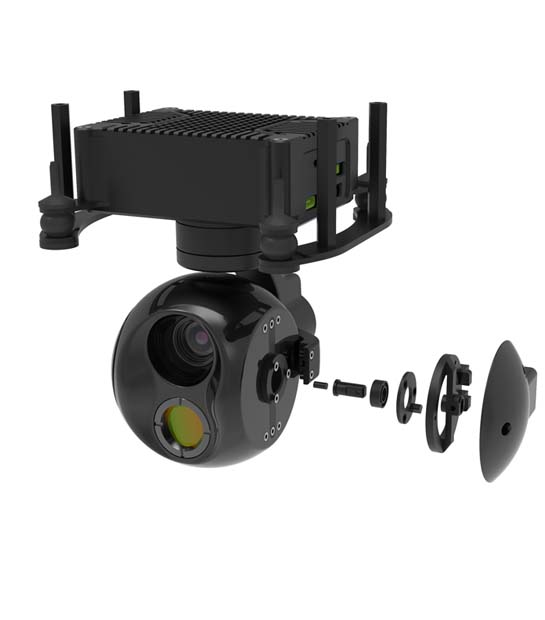

System structure

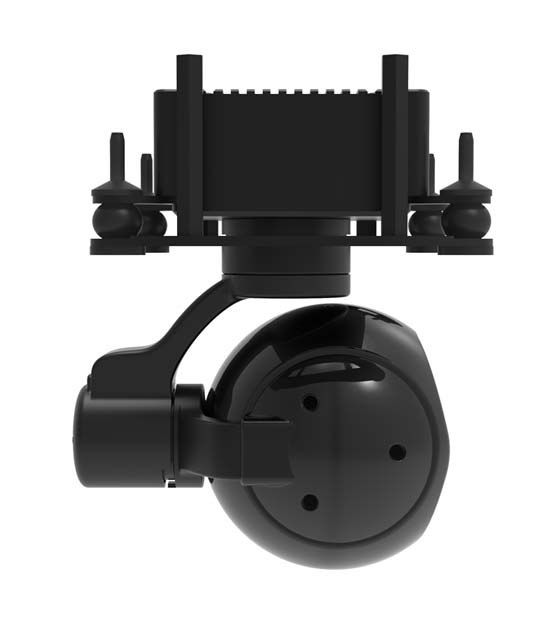

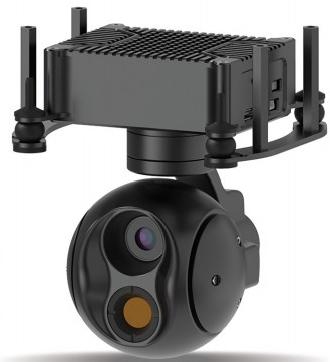

KIP4KQ02T609 IP Small Dual light 640 IP small gimbal camera

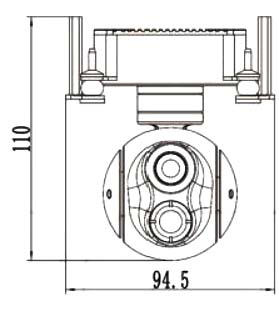

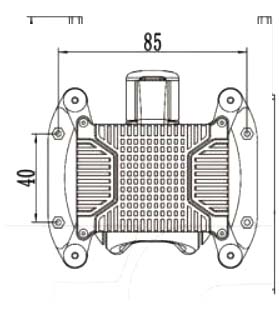

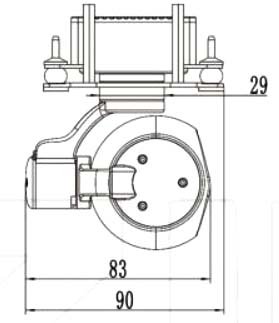

        图片2-1.jpg       图片2--.jpg      图片2-3.jpg

The factory default installation method is lower PTZ (hoisting), if select the upper PTZ (inverted) should be clearly noted before purchase; To ensure a more scientific distribution of force on the center of gravity, it's strongly recommended to use lower PTZ.



Material

Aircraft aluminum alloy

Installation method

Lower PTZ (factory default) /Upper PTZ (optional)

Voltage

12V

Power Supply

Dynamic 8.4W

Protection rank

IP43

Gimbal Feature

Roll Angle

- 55~+ 5

Pitch Angle

- 30~+120°

Yaw Angle

-150°~ +15

Attitude correction

Auto

One-Click Restore

One-click restore to the initial position

Control mode

S.BUSTTL UARTTCPUDP

Working model

Follow yaw(default); Lock yaw;90°overlook

Control mode

Speed control; Angle control; Point to move; Target tracking

Controllable rotation speed (default)

Min: 0.18°/s Max: 45°/s

Photo format

JPG1920*1080

Video storage format

MP4

Video encoding type

H.264 / H.265

Video output format

3840*2160@30fps

Storage methods

Mirco SD: 32GB

CMOS Size

1/3 inch 4 mega effective pixels CMOS SENSOR

Optical Zoom

10x HD optical zoom +9xdigital zoom, f=4.9±10%~49±10%mm

AF Time

Real time fast focusing, focusing time < 1s

Video Output

IP HD RTSP output 1080P, video stream local TF storage

Local Record

Local TF recordH.264/H2651080P video stream

Field Angle (FOV)

nD : WIDE 66.6º±5% TELE 7.2º±5%
nH : WIDE 53.2º±5% TELE 5.3º±5%
nV : WIDE 39.8º±5% TELE 4.2º±5%

Support Mode

1080P 30fps

Visible light module

Sensor

1/2.8 " IMX415

Size

Φ14×16.4mm

Visible light resolution

4K

Zoom factor

6Xsmooth zoom

Lens focal length

8mm

Minimum object distance

0.3m

Pixel size

1.45um

Focus mode

Manual

FOV D×H×V(°)

50°x40°x30°

Aperture

F2.0

Main beam incidence angle

≤4.53°

Thermal Image

Sensor

Uncooled infrared focal plane of vanadium oxide

Packaging method

High density ceramic packaging

Focal length

9.1mm

Resolution

640*512

Pixel pitch

12μm

Wavelength range

8~14μm

FOV

48.1°×38.4°

NETD

≤50Mk@25℃F#1.0

Zoom factor

8X(smooth zoom

Frame rate

25Hz

Color palettes

Black heat/ White heat

Manual recognition distance

(person)

300m

Manual recognition distance

(vehicle)

600m

AI recognition distance

(person)

200m

AI recognition distance

(vehicle)

500m

AI tracker

Auto-detect target types

Typical targets like vehicles and people

Multi-target detection number

≥20

Min target size

36×36 pixel

Target detection rate

≥90%

Target recognition rate

≥85%

Target capture time

≤5frame

FAR

≤10%

Image tracking accuracy

≤1pixel

Anti occlusion time

3s

Max target tracking field of view

≤ 1/3 field of view

Processing speed

≥30fps@1080P

Anti target deformation/occlusion

Auto

Target switching tracking

Support

Target tracking mode

Recognition tracking, Feature tracking

Tracking target selection method

Point tracking

Tracking autozoom

Support

Neural network computing power

 6.0 TOPS

Target localization

Positioning method

Image center point positioning (GPS information needs to be received)

Positioning accuracy

20m (@Measure slope distance 500m)

Coordinate output type

Latitude and longitude

Physical shock absorption structure of PTZ

Longitudinal shock absorption distribution

Down pressure type 4 shock-absorbing balls physical shock absorption

Effective image stabilization amplitude

0.5mm@30~500Hz

Effective working amplitude

1.2mm@25Hz3mm@5Hz



Device Size

80mm×60mm×110mm

Working current

0.7A

Work Condition

-20℃~55

Storage Condition

-30℃~70℃

Mainly usage

 UAV aerial photography

Weight (Not including dampers)

280 ±10g
